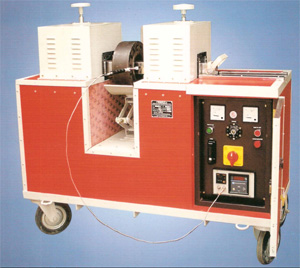

CUSTOM BUILT VERTICALTYPE-VGK-CV- III CUSTOM BUILT (Reference Bearing)
Here the Equipment is made of two Induction Coils one at the left and other at the right for better efficiency. Here Magnetic conductors are slid through the induction coil and bearings/component as shown.
This type of equipment can also be designed with pneumatic sliding arrangement, then you can use only one Magnetic Conductor.
Standard Accessories:
1. Magnetic conductors to suit
different sizes of components.
2. Vernier type Temperature Sensor
3. Component Lifter
4. Control Panel
Supply: 420V single phase 50 Cyc 6.6 KVA-20 KVA
Note :- If the standard equipment is not suitable, kindly furnish the following information to suit your requirements.
1. Minimum and maximum Inner diameter, Outer diameter and width of the bearings.
2. The temperature required, duration and metal used.
